Coating Head – mod. BS2

Technical Features

Coating Head – mod. BS2

The Coating Head mod. BS2 has been designed and built so that different coating techniques can be employed.

The following are some of the advantages that this machine has to offer:

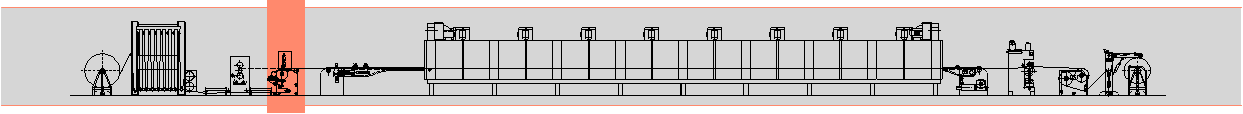

– Easy implementation: the coating head can be placed at the inlet of a common stenter
– Maximum control over compound quantity; process reproducibility is guaranteed
– Great flexibility in choosing compounds and textile supports, the variety of which is continuously growing
– Great accuracy in the tensioning of textile support passing through the machine.

The unit can be used both for air-coating and coating on cylinder, and is equipped with a motorized device to adjust the coating thickness, through digital displays.

The machine is equipped with a rotary screen coating head. Such coating system allows for maximum control over compound penetration.

Technical data

to be defined
400 V/50 Hz/three-phase
5 kW
7±1 Kg/cm²
